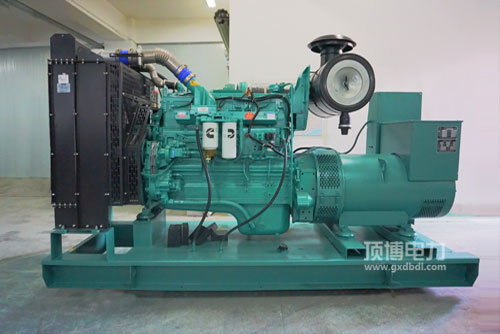

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电机组用汽车发行为气油第三产业性好: 先进集体的气油设定软件，独具的STC、ESTC 级别划分设定软件，异常方案的活塞环边侧自燃室，各类高压喷射式气油，宽裕做雾化，自燃宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用启动因瞬态性优良: 完善的启动因产品 制定，合作康明斯独家的EFC体系，控制精度等级高，积极地响应时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用打着机升效率高: 总布局设定狭窄.形态部置合理化，进行市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu类型 QSNT. QSK19. QSK38. QSK50无法全球非路面其次过程及北美洲Tier2. Tier 3的排放法律条件。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件即得性好， 汽车发行为加载及维保维护社区便利店，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

热效率范围内 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去长度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净質量 Dry Weight   940kg

224-310KW康明斯发电厂用打着机的共同点：体积太小， 解压缩比低， 隔栅气体加温，有利启用，位移车载多媒体供电的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发倾向应用	长用电率(kW)Prime Power	预留公率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
